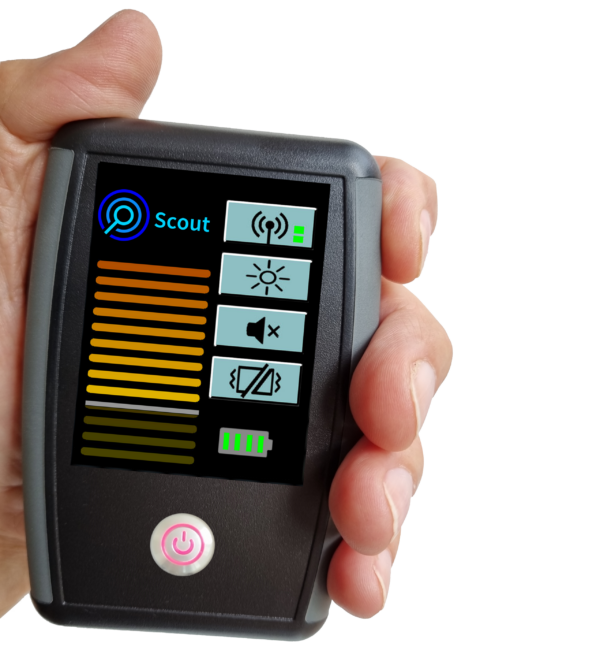

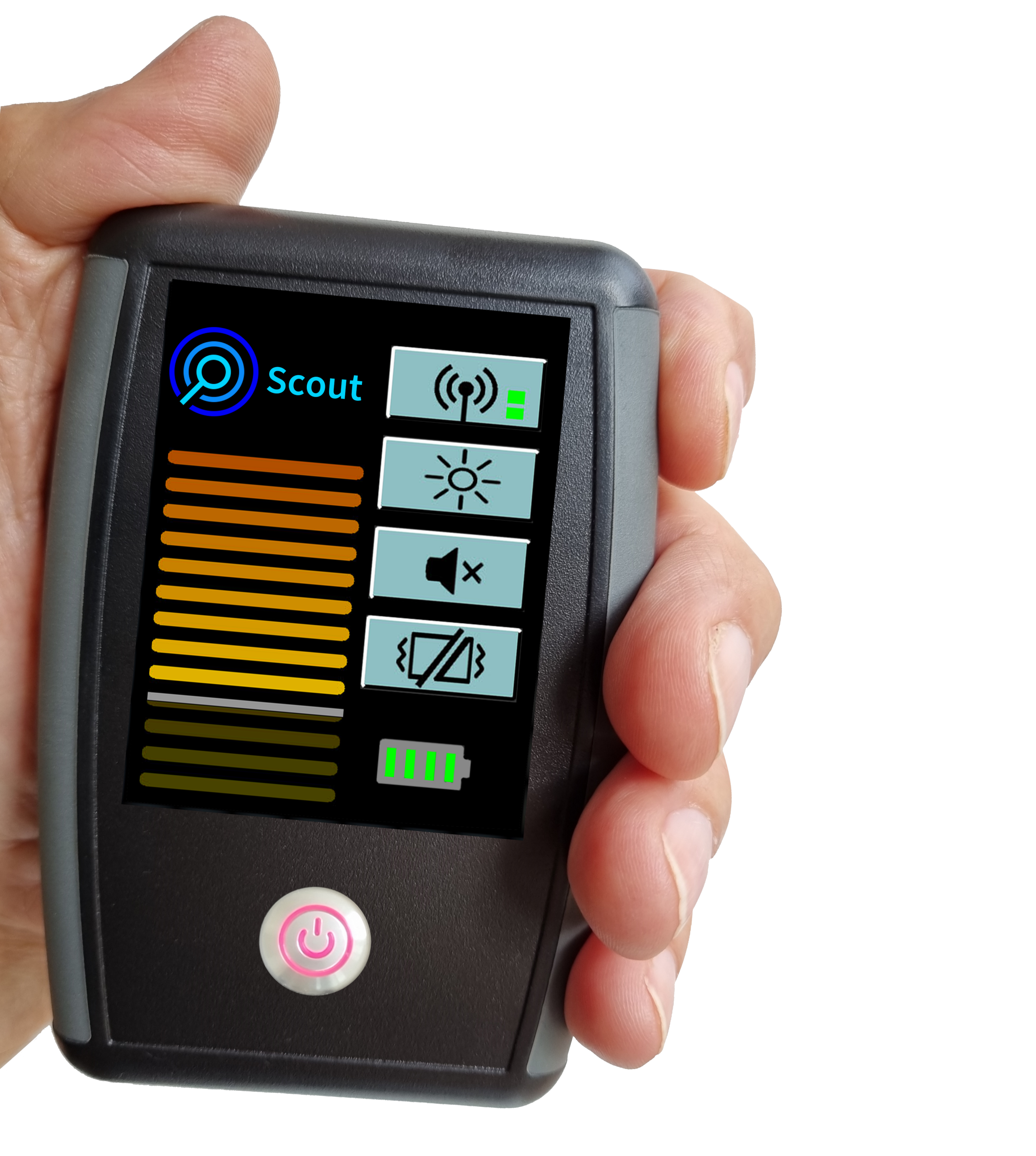

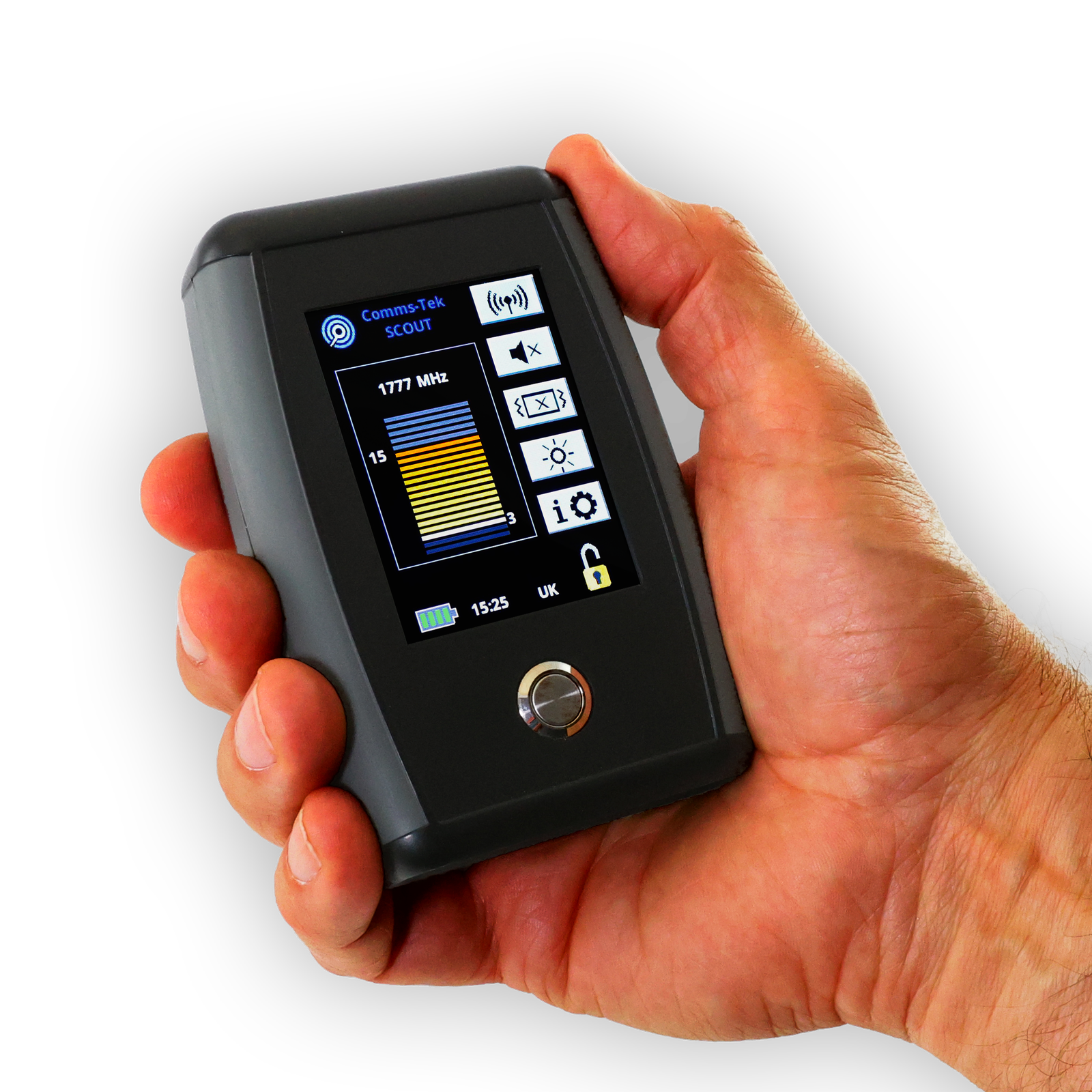

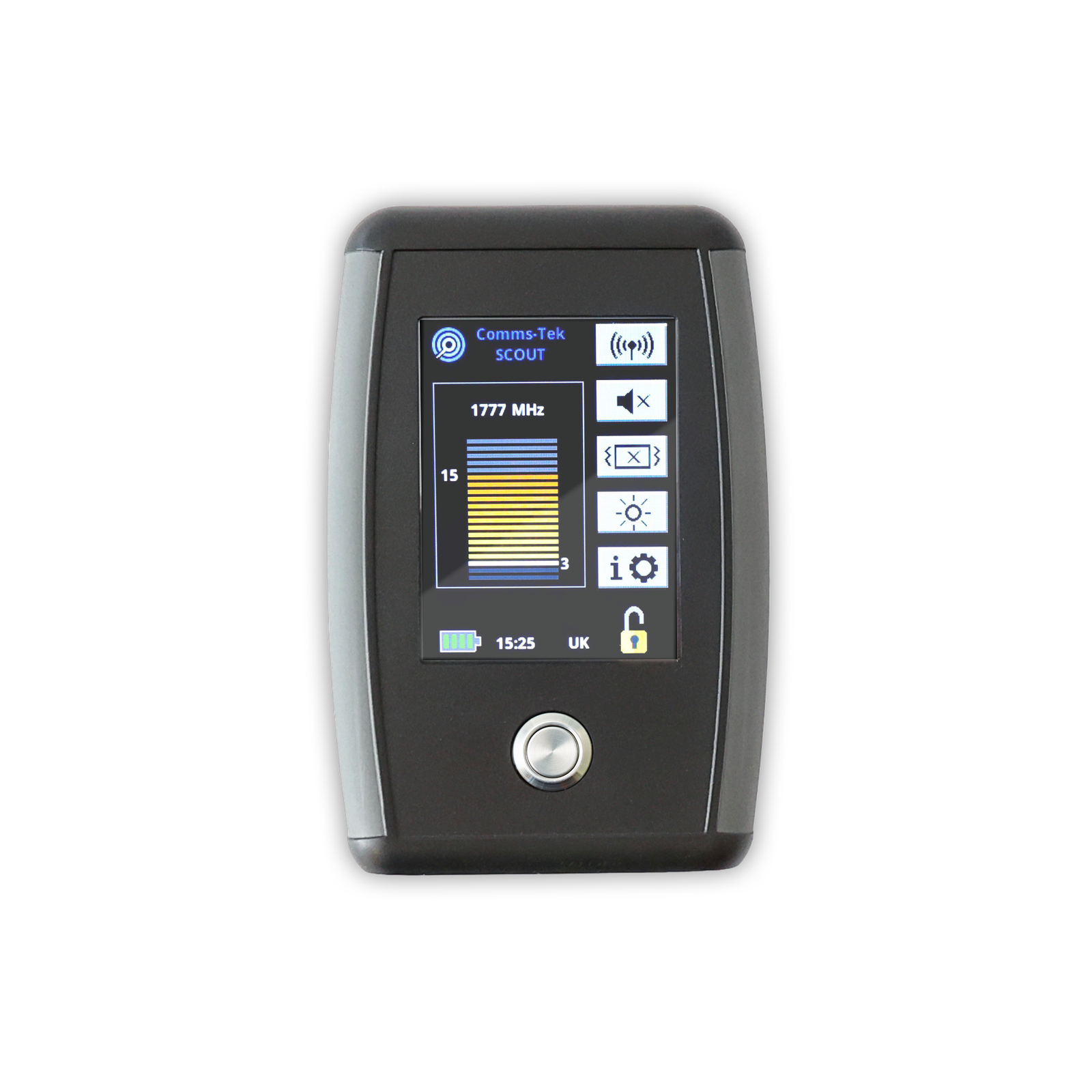

Scout™

Scout provides portable, pocket-sized detection of nearby cellular activity for security patrols, inspections and routine operations, in Original (omnidirectional) and Directional (external antenna) configurations.

600 MHz – 4 GHz: 2G, 3G, 4G and 5G
Up to 165 ft indoors / 330 ft outdoors detection range
6.5 oz, pocket-sized
6-hour battery, 3-hour recharge
Original or Directional configuration

Request a quote Request the datasheet

SKU: N/A Categories: Cell Phone Detectors, RF Detectors

Description

Scout provides portable detection of nearby cellular activity for security patrols, inspections and routine operations.

Original Scout

Provides continuous monitoring for nearby cellular activity using an integrated omnidirectional antenna. Audible, visual and vibration alerts notify operators when active mobile phone transmissions are detected.

Directional Scout

Adds an external antenna connection and directional antenna capability, allowing operators to investigate detections and narrow down the source of detected cellular transmissions.

Why security teams choose Scout

Always with you. Pocket-sized at 6.5 oz, with a belt-attachable holster.
Covers every current network. Detects active 2G, 3G, 4G and 5G signals, in cellular FDD and TDD receiving modes.
Alerts your way. A 20-level on-screen signal meter, a speaker and a vibration motor, each with on/off control.
Detect, then narrow down. Directional Scout adds an external antenna connection to investigate detections and narrow down the source.
Lasts the shift. A 6-hour rechargeable battery, or run it from AC power for continuous operation.

Applications

Security patrols: continuous monitoring for nearby cellular activity.
Inspections: spot checks for active mobile phones.
Routine operations: everyday detection as part of standard procedures.

Features

Detects active 2G, 3G, 4G and 5G signals
Pocket-sized handheld design
Audible, visual and vibration alerts
Adjustable sensitivity settings
Rechargeable battery
Available in Original and Directional configurations

Scout or Hunter?

	Scout™	Hunter™
Best for	Everyday patrols, inspections and spot checks	Large-area searches and pinpointing a signal
Detects	Cellular (2G–5G)	Cellular (2G–5G), Wi-Fi and Bluetooth
Frequency range	600 MHz – 4 GHz	400 MHz – 6 GHz
Detection range	Up to 50 m (165 ft) indoors, 100 m (330 ft) outdoors	Up to 53 m (175 ft) indoors, 300 m (1,000 ft) outdoors
Antennas	Built-in omnidirectional (Directional Scout adds an external directional antenna)	Omnidirectional, directional and probe
Battery	6 hours	5+ hours continuous
Weight	6.5 oz (184 g)	2.6 lb (1.2 kg) excluding antennas

What’s in the box

Scout™ detector
Power supply with charging cable
Belt-attachable holster

Additional information

Configuration	Original Scout, Directional Scout
Model	Scout™
Display and Control	2.8 inch, 320×240 touch screen Signal level meter with configurable threshold Controls for sensitivity, brightness, audio and vibration control Battery indicator Screen lock button Battery info and settings for region, attenuation and frequency band selection
Alerts	On-screen signal level meter for cellphone alert, showing 20 individual levels Speaker for sound alert, with on/off control Vibration motor for haptic feedback, with on/off control Battery indicator shown on screen
Range of Detection	Up to 330 feet outdoors, 165 feet indoors Range can differ depending on target signal strength and external factors such as physical environment
Frequency Range	600 MHz to 4 GHz. Coverage of all cell phone bands, 2G, 3G, 4G and 5G
Receiving Modes	Cellular, FDD and TDD
Dynamic Range	80 dBm
Sensitivity	-80 dBm
Bandwidth Resolution	4 MHz
Maximum Signal Input	-10 dBm
Antenna	Built in, omnidirectional broadband antenna
Power Requirements	5V / 2A
Battery	Rechargeable Lithium-Ion Run Time: 6 hours Charging time: 3 hours from empty Can be used on AC power for continuous operation
Enclosure Dimensions	Width: 3.1″ Height: 4.7″ Depth: 1.1″
Enclosure Type	ABS with soft plastic grip
Weight	6.5oz
Ports	2.1mm round barrel plug for DC power
Software Updates	Wirelessly updated using PC
Included Accessories	Power supply with charging cable Belt attachable holster
Warranty	1 year

FAQs

What is the difference between Original Scout and Directional Scout?

Original Scout uses an integrated omnidirectional antenna for continuous monitoring. Directional Scout adds an external antenna connection and directional antenna capability, so you can narrow down the source of a detection.

How far away can Scout detect a phone?

Up to 165 feet indoors and 330 feet outdoors. Range depends on the strength of the target signal and the physical environment.

Which networks does Scout detect?

Active 2G, 3G, 4G and 5G signals across 600 MHz to 4 GHz.

How long does the battery last?

Around 6 hours, with a 3-hour charge from empty. Scout can also run on AC power for continuous operation.

Can Scout be used silently?

Yes. The speaker and vibration alerts each have on/off control, and the on-screen signal meter shows 20 individual levels.

How is Scout updated?

Software is updated wirelessly using a PC.

Should I choose Scout or Hunter?

Scout is built for everyday patrols and spot checks. For large-area searches, Wi-Fi and Bluetooth detection and pinpointing a signal, take a look at Hunter™.

Documentation

Scout™ datasheet (PDF): request a copy by email.
