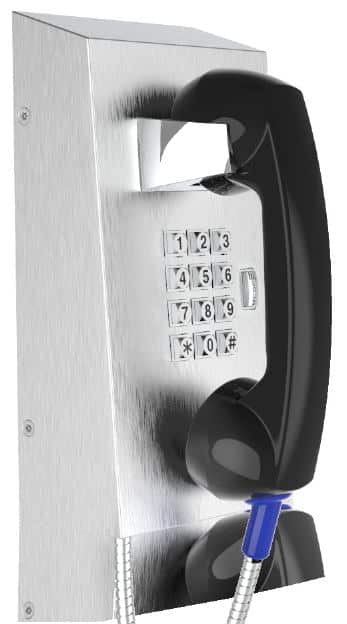

LG410-FK-VC-AL

The LG410-FK-VC-AL is a stainless steel vandal resistant analog telephone with IP65/IK10 protection, designed for prisons, transport hubs and other high-security or public environments.

  • IP65 / IK10 stainless and cold-rolled steel housing
  • Full metal 12-key keypad with volume control
  • 83 cm armored cord and hearing aid compatible handset
  • Line-powered: no separate power supply
  • -40 °C to 65 °C operating temperature

Request a quote Request the datasheet

Description

The LG410-FK-VC-AL is a vandal resistant analog telephone housed in a corrosion-resistant stainless steel and cold-rolled steel enclosure, built to maintain reliable communication in high-risk and public environments. Its armored handset cord and reinforced housing provide added resistance to vandalism and heavy industrial use, while a grounded, electrically isolated housing keeps calls clear and free of whistleback.

Why facilities choose the LG410-FK-VC-AL

  • Built to take abuse. A corrosion-resistant stainless and cold-rolled steel enclosure rated IP65 and IK10, with an armored handset cord and reinforced housing, resists vandalism and heavy industrial use.
  • Clear calls. The grounded, electrically isolated housing keeps calls free of whistleback, and the handset has a noise-cancelling microphone and is hearing aid compatible.
  • Simple to install. Wall-mounted, powered from the telephone line, and compatible with all standard PABX systems.
  • Managed remotely. Programmable via DTMF tones or the keypad, with remote network management and diagnostics from a central location.
  • Made to last. MTBF exceeds 50,000 hours under normal operating conditions, with lightning and transient protection to ITU-T K.21 enhanced levels.

Applications

  • Prisons and correctional facilities: robust, tamper-resistant telephony.
  • Transport hubs: reliable communication in busy public areas.
  • Public and high-security environments: reliable communication in high-risk locations.
  • Industrial sites: built for heavy industrial use.

Features

  • Robust stainless steel / cold-rolled steel housing with IP65 and IK10 protection
  • CE, FCC, RoHS and ISO9001 certified
  • Full metal 12-key keypad with volume control
  • ABS handset with noise-cancelling microphone and 83cm armored cord
  • Hearing aid compatible (HAC) handset
  • Magnetic reed hook-switch
  • Wall-mounted design, simple installation
  • Compatible with all standard PABX systems, with remote programming and diagnostics

Additional information

Model

LG410-FK-VC-AL

Housing

Brushed stainless steel / cold-rolled steel, corrosion-resistant, grounded and electrically isolated

Protection rating

IP65, IK10

Certifications

CE, FCC, RoHS, ISO9001

Keypad

Full metal keypad (12 keys) with volume control button

Handset

ABS handset with noise-cancelling microphone, hearing aid compatible (HAC)

Handset cord

83cm armored cord

Hook switch

Magnetic reed hook-switch

Power supply

Drawn from telephone line

Operating voltage

24 VDC to 65 VDC

Operating current

20 mA DC to 100 mA DC

Ringer operating voltage

48 VAC to 90 VAC (calling frequency 21 to 54 Hz)

Ringing volume

80 dB (A) @ 1 meter

Dialing method

Pulse (PD) or DTMF mode, selectable via menu (DTMF per ITU-T recommendation Q.23)

Lightning / Transients protection

Protection to ITU-T K.21 enhanced levels

Programming

Programmable remotely via DTMF tones or the keypad; remote network management from a central location

PABX compatibility

Compatible with all standard PABX systems; can support sequential calling depending on PABX model

Operating / Storage temperature

Operating -40°C to 65°C / Storage -40°C to 75°C

M.T.B.F.

Exceeds 50,000 hours under normal operating conditions

Unit dimensions

247 x 130 x 133mm

Shipping dimensions

340 x 220 x 165mm

Weight

Net 3kg / Gross 4kg

Mounting

Wall-mounted, simple installation

Reviews

There are no reviews yet.

Be the first to review “LG410-FK-VC-AL”

Your email address will not be published. Required fields are marked *

FAQs

Does the LG410-FK-VC-AL need a separate power supply?

No. Power is drawn from the telephone line (operating voltage 24 VDC to 65 VDC).

Will it work with our phone system?

It is compatible with all standard PABX systems and can support sequential calling, depending on the PABX model.

How tough is it?

The housing is brushed stainless steel and cold-rolled steel, rated IP65 and IK10, with an 83 cm armored handset cord. It operates from -40 °C to 65 °C.

Is the handset hearing aid compatible?

Yes. The ABS handset is hearing aid compatible (HAC) and has a noise-cancelling microphone.

Can it be programmed remotely?

Yes. It can be programmed remotely via DTMF tones or the keypad, with remote network management from a central location.

Which dialing modes does it support?

Pulse (PD) or DTMF, selectable via the menu.

What certifications does it hold?

CE, FCC, RoHS and ISO9001.

Documentation

LG410-FK-VC-AL datasheet (PDF): request a copy by email.
